CONCENTRIC – REDUCER Fittings

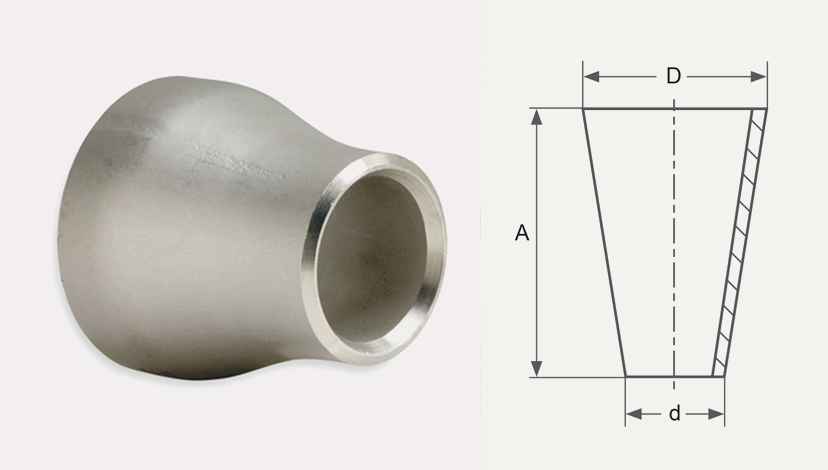

A concentric reducer is used to join pipe sections or tube sections on the same axis.The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes. For example, when a 1" pipe transitions into a 3/4" pipe and the top or bottom of the pipe doesn't need to remain level. This pipe reducer may be used when there is a single diameter change or multiple diameter changes.
| PART CODE | X | Y | L2 | L3 | L4 |
|---|---|---|---|---|---|
| BPCRL01910127 | 3/4" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPCRL02540127 | 1" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPCRL02540191 | 1" | 3/4" | 28.58 | 25.4 | 25.4 |
| BPCRL03810191 | 1-1/2" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPCRL03810254 | 1-1/2" | 3/4" | 28.58 | 25.4 | 25.4 |
| BPCRL05080254 | 2" | 1" | 28.58 | 25.4 | 25.4 |
| BPCRL05080381 | 2" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPCRL06350381 | 2-1/2" | 1-1/2" | 28.58 | 25.4 | 25.4 |
| BPCRL06350508 | 2-1/2" | 2" | 28.58 | 25.4 | 25.4 |
| BPCRL07620381 | 3" | 1-1/2" | 28.58 | 25.4 | 38.1 |
| BPCRL07620508 | 3" | 2" | 28.58 | 25.4 | 38.1 |
| BPCRL07620635 | 3" | 2-1/2" | 28.58 | 25.4 | 38.1 |
| BPCRL10160508 | 4" | 2" | 28.58 | 25.4 | 38.1 |
| BPCRL10160635 | 4" | 2-1/2" | 28.58 | 25.4 | 38.1 |
| BPCRL10160762 | 4" | 3" | 41.28 | 38.1 | 38.1 |
