TEE – REDUCING Fittings

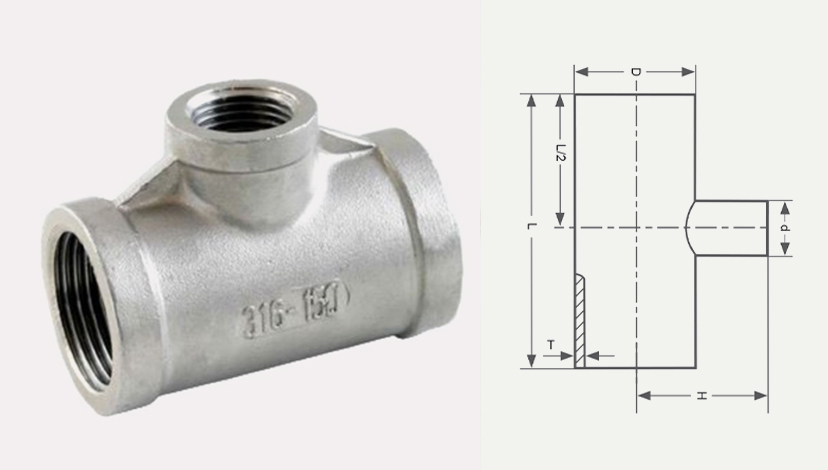

In reducing tee, the diameter of the branch size is smaller than the diameter of the Run (Header) Pipe. In the case of reducing tee, the branch size is smaller than the run pipe size. there is a limitation to the branch size. It can not be sufficiently smaller. For example, Reducing Tee from 16″ pipe is available up to 6″ branch size. 16″ X 4″ piping tee is not manufactured. Usually reducing piping tee connections are manufactured till a branch pipe size of one size lower than 1/2 the parent pipe size. This rule is valid till 28″.
| PART CODE | D(in) | T(mm) | D(mm) | L(mm) | R(mm) |
|---|---|---|---|---|---|
| BPRTL01910127 | 3/4" X 1/2" | 19.05 | 12.70 | 50.80 | 50.80 |
| BPRTL02540127 | 1" X 1/2" | 25.40 | 12.70 | 53.98 | 53.98 |
| BPRTL02540191 | 1" X 3/4" | 25.40 | 19.05 | 53.98 | 53.98 |
| BPRTL03810127 | 1-1/2" X 1/2" | 38.10 | 12.70 | 60.33 | 60.33 |
| BPRTL03810191 | 1-1/2" X 3/4" | 38.10 | 19.05 | 60.33 | 60.33 |
| BPRTL03810254 | 1-1/2" X 1" | 50.80 | 25.40 | 60.33 | 60.33 |
| BPRTL05080127 | 2" X 1/2" | 50.80 | 38.10 | 73.03 | 66.68 |
| BPRTL05080191 | 2" X 3/4" | 50.80 | 12.70 | 73.03 | 66.68 |
| BPRTL05080254 | 2" X 1" | 50.80 | 19.05 | 73.03 | 66.68 |
| BPRTL05080381 | 2" X 1-1/2" | 63.50 | 12.7 | 73.03 | 66.68 |
| BPRTL06350127 | 2-1/2" X 1/2" | 63.50 | 19.05 | 79.38 | 73.03 |
| BPRTL06350191 | 2-1/2" X 3/4" | 19.05 | 12.7 | 79.38 | 73.03 |
| BPRTL06350254 | 3/4" X 1/2" | 63.50 | 12.7 | 50.80 | 50.80 |
| BPRTL01910127 | 2-1/2" X 1" | 76.20 | 25.40 | 79.38 | 73.03 |
| BPRTL07620191 | 3" X 3/4" | 76.20 | 19.05 | 85.73 | 79.38 |
| BPRTL07620254 | 3" X 1" | 76.20 | 12.7 | 85.73 | 79.38 |
| BPRTL07620381 | 3" X 1-1/2" | 76.20 | 38.10 | 85.73 | 79.38 |
| BPRTL07620508 | 3" X 2" | 76.20 | 50.80 | 85.73 | 79.38 |
| BPRTL07620635 | 3" X 2-1/2" | 101.60 | 63.50 | 85.73 | 79.38 |
| BPRTL10160127 | 4" X 1/2" | 101.60 | 12.70 | 104.78 | 92.08 |
| BPRTL10160191 | 4" X 3/4" | 101.60 | 19.05 | 104.78 | 92.08 |
| BPRTL10160254 | 4" X 1" | 101.60 | 25.40 | 104.78 | 92.08 |
| BPRTL10160381 | 4" X 1-1/2" | 101.60 | 38.10 | 104.78 | 92.08 |
| BPRTL10160508 | 4" X 2" | 101.60 | 50.80 | 104.78 | 98.43 |
| BPRTL10160635 | 4" X 2-1/2" | 101.60 | 63.50 | 104.78 | 98.43 |
| BPRTL10160762 | 4" X 3" | 101.60 | 76.20 | 104.78 | 98.43 |
