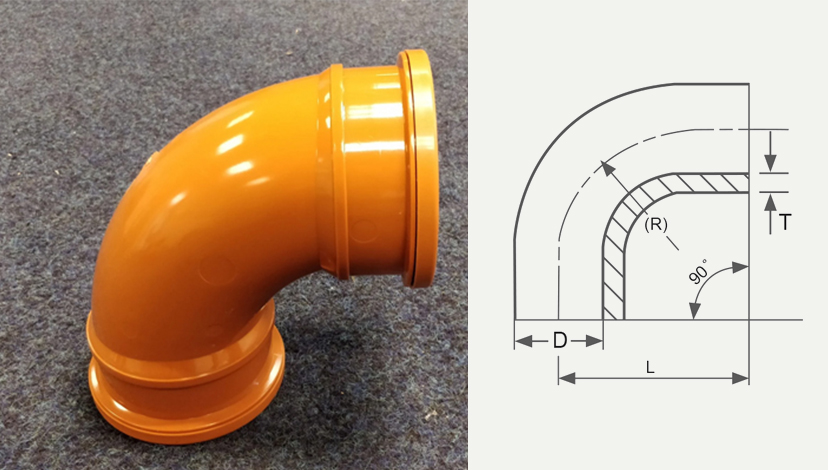

90° BEND Fittings
This type of elbow creates a 90-degree change in direction, either turning the flow of fluid from horizontal to vertical or vice versa. The majority of piping elbows used in piping or plumbing systems are 90-degree elbows. A Pipe Elbow or Piping Elbow is a specific, standard, engineered bend pre-fabricated as a spool piece (based on ASME B16.9) and designed to either be screwed, flanged, or welded to the piping it is associated with. It is a type of pipe fittings. Pipe elbows are usually manufactured to provide a 45-degree or 90-degree direction change from the main pipe direction. There can also be custom-designed piping elbows, although most are categorized as either “short radius” or long radius”.
| PART CODE | D(in) | T(mm) | D(mm) | L(mm) | R(mm) |
|---|---|---|---|---|---|
| 3A9BL0127 | 1/2" | 1.65 | 12.7 | 45.0 | 28.58 |
| 3A9BL0191 | 3/4" | 1.65 | 19.05 | 58.5 | 28.58 |
| 3A9BL0254 | 1" | 1.65 | 25.4 | 52.4 | 38.10 |
| 3A9BL0381 | 1-1/2" | 1.65 | 38.1 | 74.6 | 57.20 |
| 3A9BL0508 | 2" | 1.65 | 58.08 | 103.2 | 76.20 |
| 3A9BL0635 | 2-1/2" | 1.65 | 63.5 | 131.8 | 95.30 |
| 3A9BL0762 | 3" | 1.65 | 76.2 | 155.0 | 144.30 |
| 3A9BL1016 | 4" | 2.11 | 101.6 | 195.0 | 152.40 |
