TEE Fittings
A tee fitting is a connector that can be used in the middle of two pipes to allow them to join together. It allows for fluid, gas or power flow. The term "tee" comes from its shape - it looks like an upper case letter 'T'. A T-fitting will have three openings; one on each side and one in the middle.

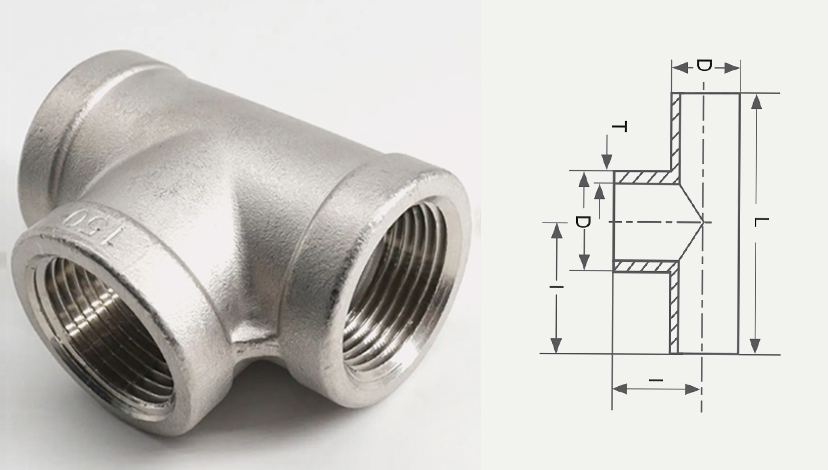

| PART CODE | D(in) | T(mm) | D(mm) | L(mm) | R(mm) |
|---|---|---|---|---|---|
| BPTL0127 | 1/2" | 1.65 | 12.7 | 97.25 | 47.63 |
| BPTL0191 | 3/4" | 1.65 | 19.05 | 101.6 | 50.8 |
| BPTL0254 | 1" | 1.65 | 25.4 | 107.90 | 53.98 |
| BPTL0381 | 1-1/2" | 1.65 | 38.1 | 120.66 | 66.33 |
| BPTL0508 | 2" | 1.65 | 58.08 | 146.06 | 73.03 |
| BPTL0635 | 2-1/2" | 1.65 | 63.5 | 158.76 | 79.38 |
| BPTL0762 | 3" | 1.65 | 76.2 | 171.46 | 85.73 |
| BPTL1016 | 4" | 2.11 | 101.6 | 209.56 | 104.78 |
