• Counting rate up to
• 3 million copies/h
• Large operating range 0 ... 120 mm
• Detects single sheets up to 0,1 mm
• False pulse suppression
• Trailing edge suppression and direct gap detection
• Synchronized input
• Quick response time of 0,34 ms
• Diagnostic software available
• Output push-pull

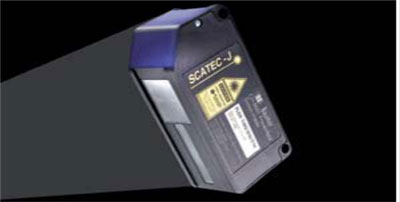

SCATEC-J
	Characterstics Compact type Plug & Play	Dimension: 30 x 110 x 50 mm measuring Distance tw: 0 ... 55 mm counting rate 280’000 copies/h
response time:	false pulse suppression:
sensibility : Single sheet/edge thickness 1,5 mm

SCATEC-2
	Characterstics ScaDiag diagnostic and programming software available Compact type Adjustable output pulse length	Dimension: 30 x 110 x 50 mm measuring Distance tw: 0 ... 120 mm counting rate 600’000 copies/h
response time:	false pulse suppression:On/off switchable
sensibility : Single sheet/edge thickness 0,2 mm
Specific Characterstics:	Opto isolated output Version for copy counting on conveying chains

SCATEC-10
	Characterstics Integrated copy counters ScaDiag diagnostic and programming software available Trailing edge suppression Adjustable output pulse length	Dimension: 30 x 170 x 70 mm measuring Distance tw: 0 ... 90 mm counting rate 3’000’000 copies/h
response time:	false pulse suppression:4 program options
sensibility : Single sheet/edge thickness 0,1 mm
Specific Characterstics:	Opto isolated output

SCATEC-15
	Characterstics Integrated copy counters CAN interface ScaDiag diagnostic and programming software available Trailing edge suppression Adjustable output pulse length	Dimension: 30 x 170 x 70 mm measuring Distance tw: 0 ... 120 mm counting rate 3’000’000 copies/h
response time:	false pulse suppression:4 program options
sensibility : Single sheet/edge thickness 0,15 mm
Specific Characterstics:	Opto isolated output
