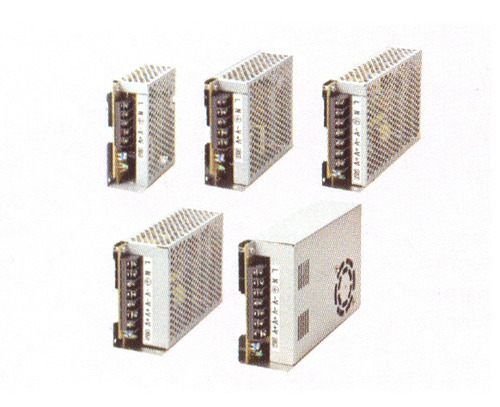

Omron Products-Power Supply

Power Supply

Specifications:-
Capacity : 15/35/50/100/150/350W
Input Voltage : 185 to 264 VAC
Mounting : Front Mounting and DIN Track Mounting

  • Smallest in the industry
  • Economical Power Supply with Ultra-compact Design.
Product Code: S8JC-Z

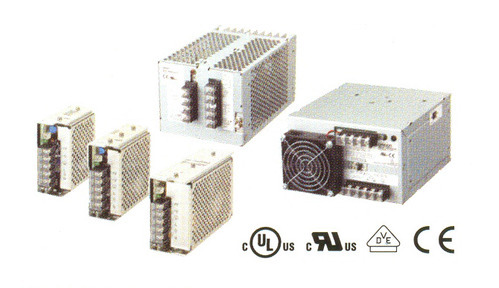

Power Supply

  • Thinner control panel with industry's top class of short body size.
  • Maintenance-free operation with fan-less 300-W-Model
  • The line up includes models from 15 to 600 W. and models from 15 to 300 W can be mounted on DIN Track

Specifications:-

Capacity : 15/35/50/100/150/300/600W
Input Voltage 15 to 150W Type : Wide input range of 100 to 240 VAC
300 /600W Type : 100 /200 VAC Switchable
Mounting :Front, top, and DIN Track mounting / DIN Track Mounting

Product Code: S8JX-G

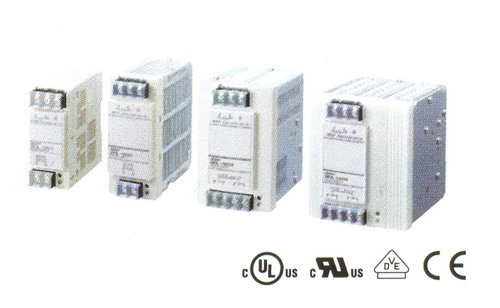

Power Supply

  • Improved Versions of Standard -type
  • Power Supplies without Indication Monitor
  • Mount to DIN Rail

Specifications:-

Capacity : 60/90/120/180/240W
Input Voltage : 100 to 240 VAC
Additional Functions : Over current protection, over voltage protection, under voltage detection and series operation
Mounting :DIN Track Mounting

Product Code: S8VE

Power Supply

  • Three-phase 400 to 500 VAC Input Switch mode power supply
  • On-rail mounting model with a range of 5A to 40A output model

Product Code: S8VT

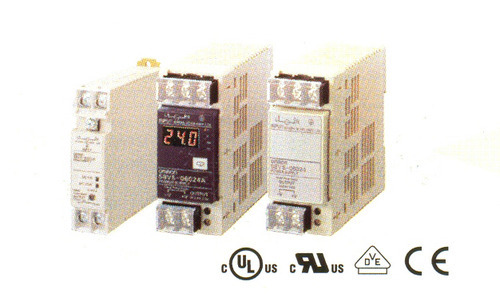

Power Supply

  • Display for monitoring replacement time, Compact size of 40 wide x 95 mm
  • High (60W)

Specifications:-

Capacity :15/30/60/90/120/180/240/480W
Input Voltage : 85 to 264 VAC
Additional Functions : Over current protection, over voltage protection, status display and series operation
Mounting :Front mounting and DIN track Mounting

Product Code: S8VS
