Electric Sensors

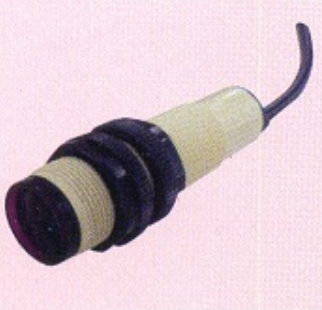

Photoelectric Sensor

Cost Effective Series

  • Cylindrical shape.
  • Product lineup includes diffuse reflective models, and retro reflective models.
  • The general application can be covered.

Specification:

Size M18*70
Sensing distance Diffuse reflective 300mm, 100mm
Adjustable Retro reflective 2m
Power Supply Voltage DC10-30V
Control output NPNIPNP output
Degree of protection IP67
Connection Pre wired
Product Code : E3FN

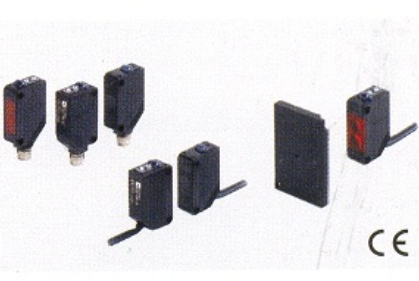

Photoelectric Sensor

Small square shape

  • Product lineup includes various kinds in the same size and the same mounting dimensions.
  • The various application can be covered.

Specification:

Size 31 * 20 *10.8
Sensing distance Diffuse reflective 1m*. 300mm
*adjustable Retro reflective 4m
*with MSR function Through beam 30m*. 15m*, 10m' Backgrand Suppression 200mm*, 80mm*
Power Supply Voltage DC12-24V
Control output NPN/PNP output
Degree of protection IP67
Connection Pre wired, M8 connector and M12 connector
Product Code : E3Z

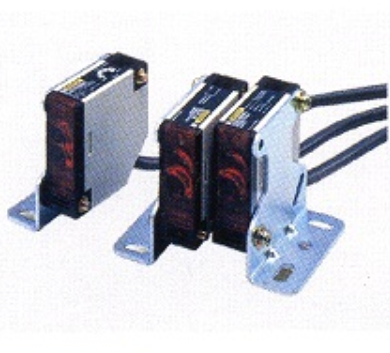

Photoelectric Sensor

Built-in power supply type

  • Possible to use by the AC power supply so it is easy to set with only sensor.

Specification:

Size 50 * 50 * 18
Sensing distance Diffuse reflective 300 mm
With MSR function Through beam 5m
Power Supply Voltage DC 12-240V, AC24-250V
Control output NPN/PNP output, Relay output
Degree of protection IP64
Connection Pre wired
Product Code : E3JK-E3JM
