Temperature Controller

• Three-level, high-visibility display of PV, MV and SV with easy operation. (See note.)
• Superior indication accuracy and preventive maintenance functions to increase equipment added value.
• Burnout detection for three-phase heaters.

Specification:

Power Supply Voltage :	100 to 240 VAC 24VAC/DC
Input :	Thermocouple/Platinum resistance thermometer/ Infrared temperature sensor!
Voltage input :	0 to 50 mV
Control output :	Relay, current, or voltage (for driving SSR)
Indication method :	E5GN and E5CN: 2 line, 4 digits "E5EN and E5AN: 3 line, 4

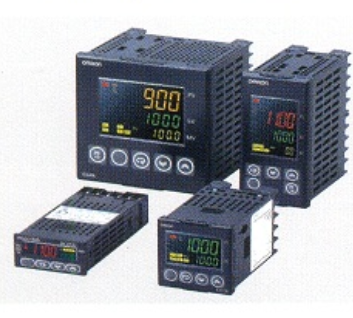

Product Code :

E5CN-E5EN-E5AN-E5GN

Temperature Controller

• 1/16 1/8 1/4-DIN Size join the best-selling.
• Models available with either temperature inputs or analog inputs.

Specification:

Power Supply Voltage :	100 to 200 VAC 24VAC/24VDC Sensor
Sensor Input :	Thermocouple/Platinum resistance thermometer/ Infrared temperature sensor!
Control output :	0 to 50 mV
Voltage input :	Relay output / Voltage output (tor driving SSR)
Sampling period :	250ms
Indication method :	2 line, 4 digits

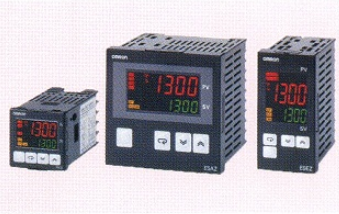

Product Code :

E5CZ-E5EZ-E5AZ

Temperature Controller

High-visibility display with character height of 13.5 mm. Product lineup includes models with alarms and models with universal inputs.

Specification:

Power Supply Voltage :	100 to 240 VAC 24VAC/DC
Input :	Universal input: thermocouple. platinum resistance thermometer, thermistor, or thermocouple/platinum resistance thermometer
Control output :	Relay or voltage(for driving SSR)
Sampling period :	500ms
Indication method :	1 line, 4 digits

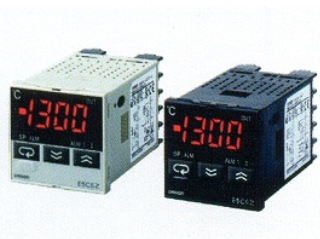

Product Code :

E5CSZ
