Electric Relay

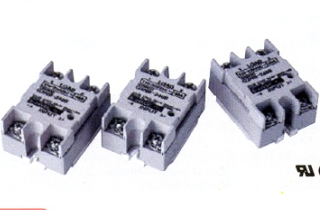

Solid State Relays

  • SSR with 40-A output at a reasonable price.
  • Zero cross function enable less noise operation.
  • Built-in varistor effectively absorbs external surges. (-UTU models)

Specification:

Rated input Voltage : 5 to 24 VDC
Rated load Voltage : 110 to 220 VAC
Load Current : with heat sink 0.1 to 40A without heat sink 0_1 to 9A
Isolation : Photocoupler
Zerocross function : Yes
Indicator : Yes
Product Code : G3NB

Solid State Relays

Wide variety of applicable loads from 5 to 90 A. Built-in varistor for powerful suppression of external surges. Operation indicators for easy confirmation of operation.

Specification:

Power Supply Voltage : G3NA-200B AC100 to 120V1AC200 to 240V 5 to 24VDC G3NA-4013B.G3NA-200B-UTU AC100 to 240V 5 to 24VDC
Rated load voltage 24 to 240 VAC(D3NA-210B 5 to 200VDC
Rated current (With radiator) -Max Value -5k--10k-20A/-40A -50.41-75A1-90A
Insulation method : Photo-triac or photocoupler
Zerocross function : Yes
Operation indicators : Yes
Product Code : G3NA

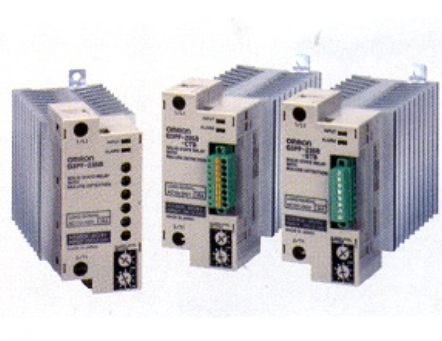

Solid State Relays

  • Built-in CT reduces wiring.
  • Detect burnout in one of multiple heater elements or burnouts in three-phase heaters.
  • Detect SSR short-circuit failures.

Specification:

Power Supply Voltage : (Detection section) 24 VDC (Operation input section)12 to 24 VDC
Rated load voltage 100 to 240 VACl200 to 480 VAC
Rated current 2 to 35A
Insulation method : Photo-triac or photocoupler
Zerocross function : Yes
Operation indicators : Yes
Product Code : G3PF

Solid State Relays

  • SSR integrated with radiator in a compact, slim model for switching heaters_.
  • Product lineup includes models with zero-cross function and models without zero-cross function.
  • Mounting can be done with screws or with DIN Track.

Specification:

Power Supply Voltage : 12 to 24 VDC
Rated load voltage 100 10 240 VAC/200 to 480 VAC
Load Current : Max Value : -25A1-35A1-45A
Insulation method : Photo-triac or photocoupler
Zerocross function : Yes/No
Operation indicators : Yes
Product Code : G3PE
