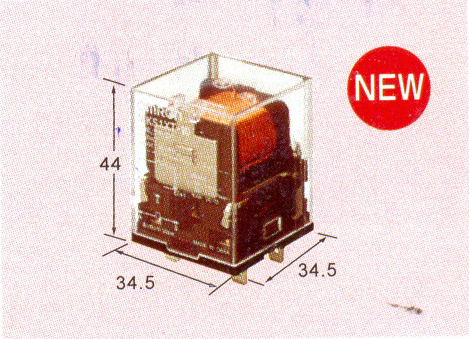

DC - Load Switching Models

Stable & Reliable Power switching Relay with 40years of Track

• Standard Model : MM2(P)/MM3(P)/MM4(P)
• Contact Form : DPDT/3DPT/4PDT
• Rated load : AC220V 15A
• (Resistive load) : DC 24 V 10A
• (AC220V 7.5A DC24V 5A)
• Rated coil volted : AC6 to 200/220 V,
• DC6 to 200/220V
• Mechanical endurance : 5,000,000 operations min
• Ambient operating : -10 to + 55 C
• temperature
• Approved standards : LR
• Others : Latching model (MMK) is available
• Applicable Socket : 8PFA /11PFA /14PFA / PL08/PL11/PL15.

DC-Load Switching Models

The improved relays in the MK and super MK series enable 10-A switching with a compact design.

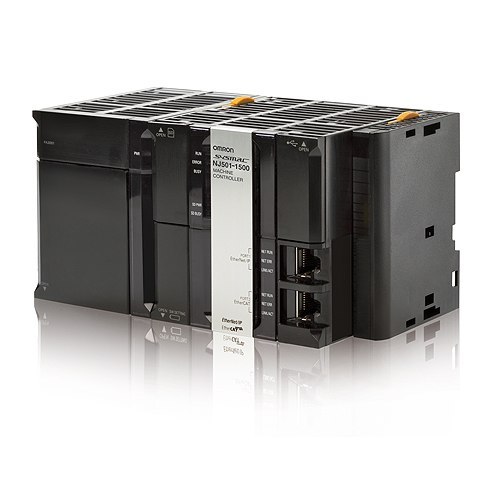

Automation Systems

We at Pioneer Controls, offer a range of Omron Products like Automation systems, Safety solution systems etc.
