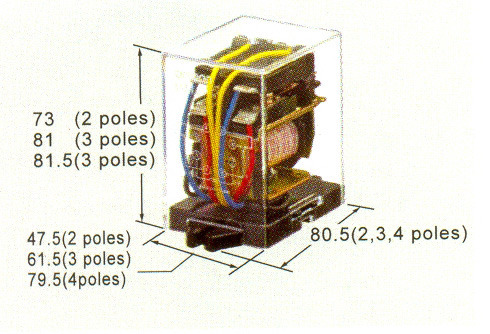

Power Relay
Stable & Reliable Power switching Relay with 40years of Track Record
- Standard Model : MM2(P)/MM3(P)/MM4(P)
- Contact Form: DPDT/3DPT/4PDT
- Rated load: AC220V 15A
- (Resistive load) : DC 24 V 10A
- (AC220V 7.5A DC24V 5A)
- Rated coil volted : AC6 to 200/220 V,
- DC6 to 200/220V
- Mechanical endurance : 5,000,000 operations min
- Ambient operating : -10 to + 55 C
- temperature
- Approved standards : LR
- Others: Latching model (MMK) is available
- Applicable Socket : 8PFA /11PFA /14PFA / PL08/PL11/PL15.

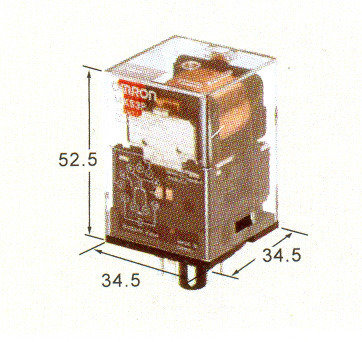

Series Power Relay
The improved relays in the MK and super MK series enable 10-A switching with a compact design.

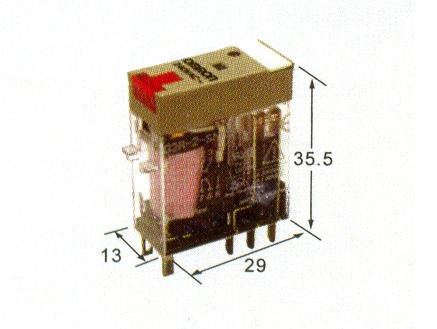

Power Relay (1 Poles)
We are offering G2RS Series Power Relay (1 Poles).
Ultra Compact, Space -Saving Plug in Relays with 10-ASwitching
- Standard Model : G2R-1-S
- Model with LED indicator : G2R-1-SN
- Model with built-in-diode : G2R-1-SND
- Coil surge suppression
- Model with built-in-LED : G2R-1-SNI
- Indicator with test button
- Contact Form :SPDT
- Rated load : AC250V 10A
- (Resistive load) : DC 30 V 10A
- Rated coil volted : DC6 to 48V,
- AC624 to 240V
- Mechanical endurance : 10,000,000 operations min.(AC)
- 20,000,000 operations min. (DC)
- Electrical Endurance : 100,000 operation min.
- Ambient operating : -40 to + 70 C
- Temperature
- Approved standards : UL, CSA, VDE/IEC LR
- Applicable Socket : P2RF-05(-S)/P2R-05P/P2R-05A/P2R-057P
