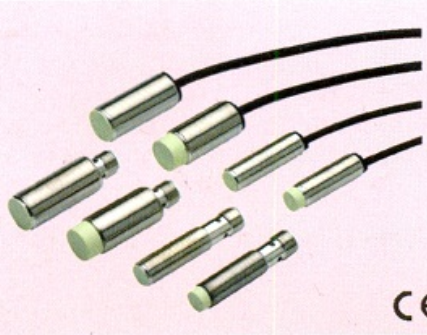

Proximity Sensor

Cost Effective Series

• Prewired and connector DC 3-wire model.

Size	M12/M18
Sensing distance	2mm/5mm/8mm
Power Supply Voltage	DC10 to 30V
Control output	DC3wire, PNP/NPN
Degree of protection	IP67

Product Code :

E2GN

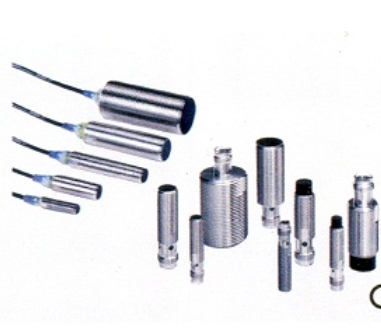

Proximity Sensor

Premium Series for long distance

• Extensive product lineup including long distance detection

Specification:

Size	M8/M12/M18/M30
Sensing distance	2mm/4mm/8mm/15mm
Power Supply Voltage	DC10 to 32V
Control output	DC3wire, PNP/NPN
Degree of protection	IP67, P69K

Product Code :

E2A

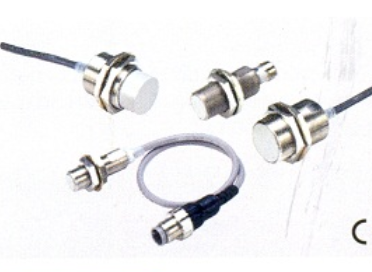

Proximity Sensor

Features

• Premium series for harsh environment
• Tough construction with strong resistance against cutting oil on the sensing surface.
• Cable protector included as a standard feature.
• Product lineup includes models with mutual interference protection and models with self-diagnosis.

Specification:

Size	M8M121M18/M30
Sensing distance	DC2wire : 2mm/3mmi7mm,'10mm DC3wire:1 .5mmi2mm/5mm,'10mm
Power Supply Voltage	DC10 to 30V
Control output	DC3wire/DC2wire. PNP/NPN
Degree of protection	IP67 (water and oil resistance)

Product Code :

E2E

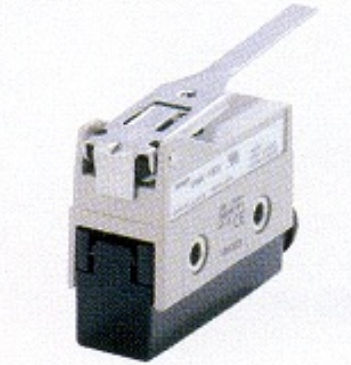

Limit Switch

Feature:

• High Utility Enclosed Switch.
• Economical Horizontal Models.

Specification:

Switching Capability	AC 250 V 10A
Durability	Mechanical 10,000,000 operations min. Electrical 500,000 operations min.
Degree of Protection	IP 67
Actuators

Product Code :

D4MC
